IC I/O ITE8502E

Description

Specification Details

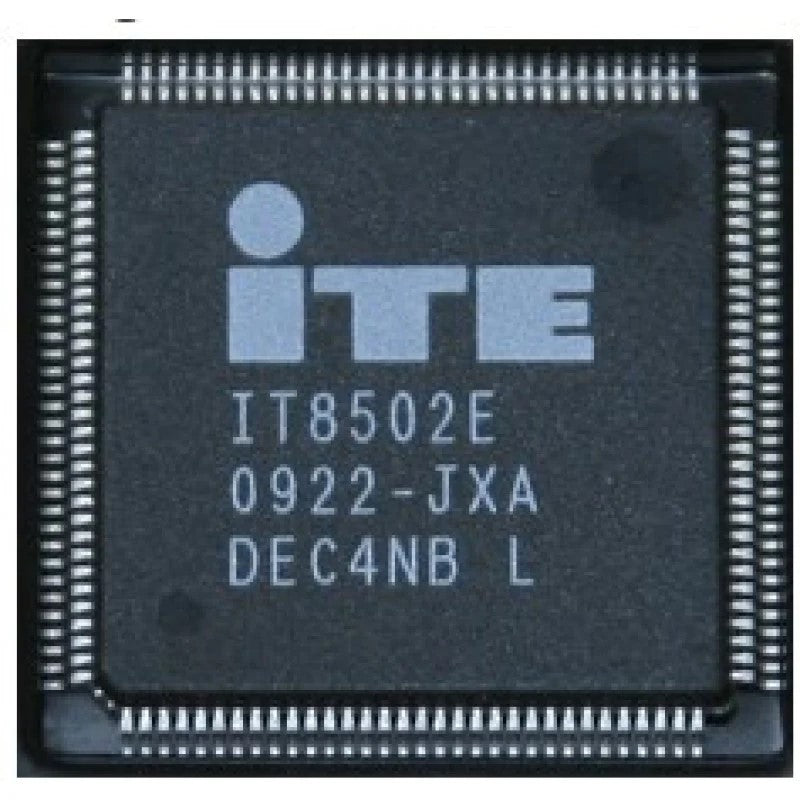

Product Name ITE IT8502E Embedded Controller IC
Manufacturer ITE Tech. Inc.
Component Type Embedded Controller / I/O controller
Package / Pins LQFP / QFP – 128 Pin package
Description Highly integrated embedded controller designed for system control and peripheral interfacing in mobile and computing applications. Provides keyboard controller (KBC), ACPI power management, hardware monitoring, flash interface, and general I/O functions.
Core Functions ACPI embedded controller, keyboard scanning and matrix scan, LPC bus interface, PS/2 interface for keyboard/mouse, hardware monitor via PWM and ADC, BRAM, system wake-up control.
Memory Support Built-in 4 KB SRAM; supports external serial flash (up to 16 MB) shared between host and EC.
Analog & I/O 12-channel 10-bit ADC; 6-channel 8-bit DAC; 8 PWM channels; multiple GPIOs.

IC I/O ITE8502E

Product form
Free pickup in our shop(s)

Rs. 1,000.00 Rs. 500.00

    • Free shipping on all orders above 10,000
    • No hassle replacement
    Variour Payment Option

    - Payment through payment gateway

    Description

    Specification Details
    Product Name ITE IT8502E Embedded Controller IC
    Manufacturer ITE Tech. Inc.
    Component Type Embedded Controller / I/O controller
    Package / Pins LQFP / QFP – 128 Pin package
    Description Highly integrated embedded controller designed for system control and peripheral interfacing in mobile and computing applications. Provides keyboard controller (KBC), ACPI power management, hardware monitoring, flash interface, and general I/O functions.
    Core Functions ACPI embedded controller, keyboard scanning and matrix scan, LPC bus interface, PS/2 interface for keyboard/mouse, hardware monitor via PWM and ADC, BRAM, system wake-up control.
    Memory Support Built-in 4 KB SRAM; supports external serial flash (up to 16 MB) shared between host and EC.
    Analog & I/O 12-channel 10-bit ADC; 6-channel 8-bit DAC; 8 PWM channels; multiple GPIOs.
