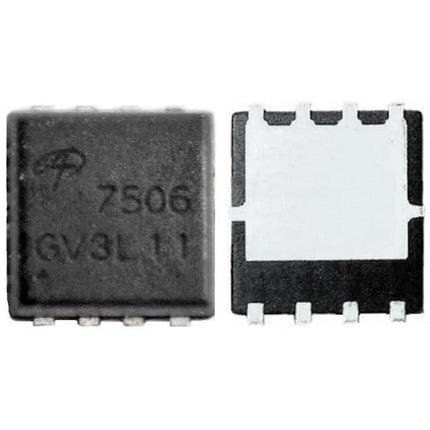

IC 7506 MOSFET

Description

Specification Details
Product Name AON 7506 N‑Channel MOSFET
Part Number 7506 (AON7506)
Manufacturer Alpha & Omega Semiconductor Inc. (commonly seen)
Component Type N‑Channel Power MOSFET (Metal‑Oxide‑Semiconductor Field‑Effect Transistor)
Channel Type N‑Channel Enhancement Mode
Drain‑Source Voltage (Vdss) 30 V maximum
Continuous Drain Current (Id) ~12 A @ Vgs=10 V (typical for some versions)
RDS(on) ~9.8 mΩ @ Vgs=10 V (max)
Gate‑Source Voltage (Vgs) ±20 V max
Package Type 8‑Pin DFN / QFN (Surface Mount)
Typical Application Switching regulator, load switch, DC‑DC converters and general power switching
Power Dissipation ~29 W (depending on board thermal)
Operating Temperature –55 °C to +150 °C junction

IC 7506 MOSFET

Product form
Free pickup in our shop(s)

Rs. 206.00 Rs. 103.00

    • Free shipping on all orders above 10,000
    • No hassle replacement
    Variour Payment Option

    - Payment through payment gateway

    Description

    Specification Details
    Product Name AON 7506 N‑Channel MOSFET
    Part Number 7506 (AON7506)
    Manufacturer Alpha & Omega Semiconductor Inc. (commonly seen)
    Component Type N‑Channel Power MOSFET (Metal‑Oxide‑Semiconductor Field‑Effect Transistor)
    Channel Type N‑Channel Enhancement Mode
    Drain‑Source Voltage (Vdss) 30 V maximum
    Continuous Drain Current (Id) ~12 A @ Vgs=10 V (typical for some versions)
    RDS(on) ~9.8 mΩ @ Vgs=10 V (max)
    Gate‑Source Voltage (Vgs) ±20 V max
    Package Type 8‑Pin DFN / QFN (Surface Mount)
    Typical Application Switching regulator, load switch, DC‑DC converters and general power switching
    Power Dissipation ~29 W (depending on board thermal)
    Operating Temperature –55 °C to +150 °C junction

    Returns & Delivery

    When will my order be delivered?

    We ship worldwide. Your order will be packaged really carefully and delivered wherever you want. Delivery takes between 5-7 business days. You will receive an e-mail after ordering with more information about the delivery.

    How I will get replacement if material get problem during warranty period?

    For replacement during warranty period you just need to inform us at our customer support number or email us at below
    Call : +91 8240399503
    Email : support@srmcartgo.com

    What can I do if my item (or part of it) is damaged?

    We work hard to deliver your items without damage. Orders can be returned or exchanged within 10 days of receiving the parcel, providing they are in original resalable condition.
